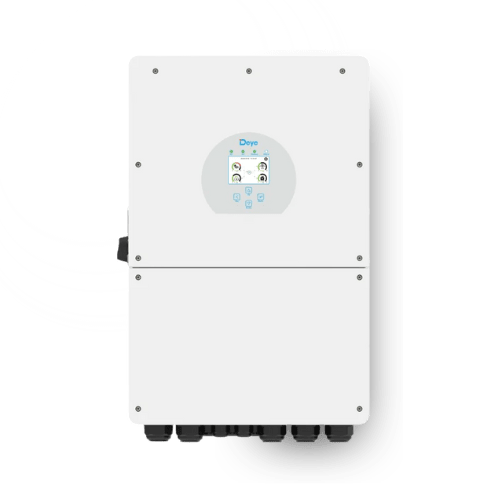

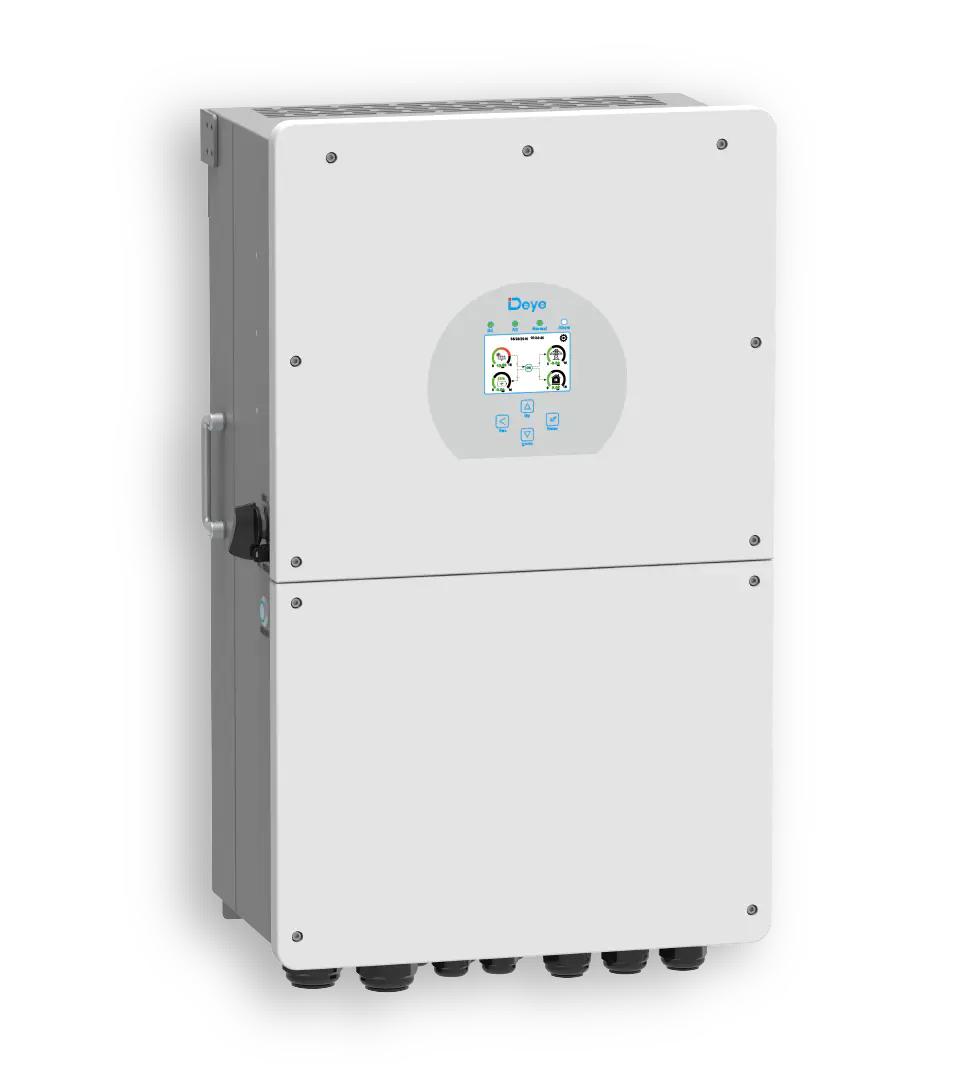

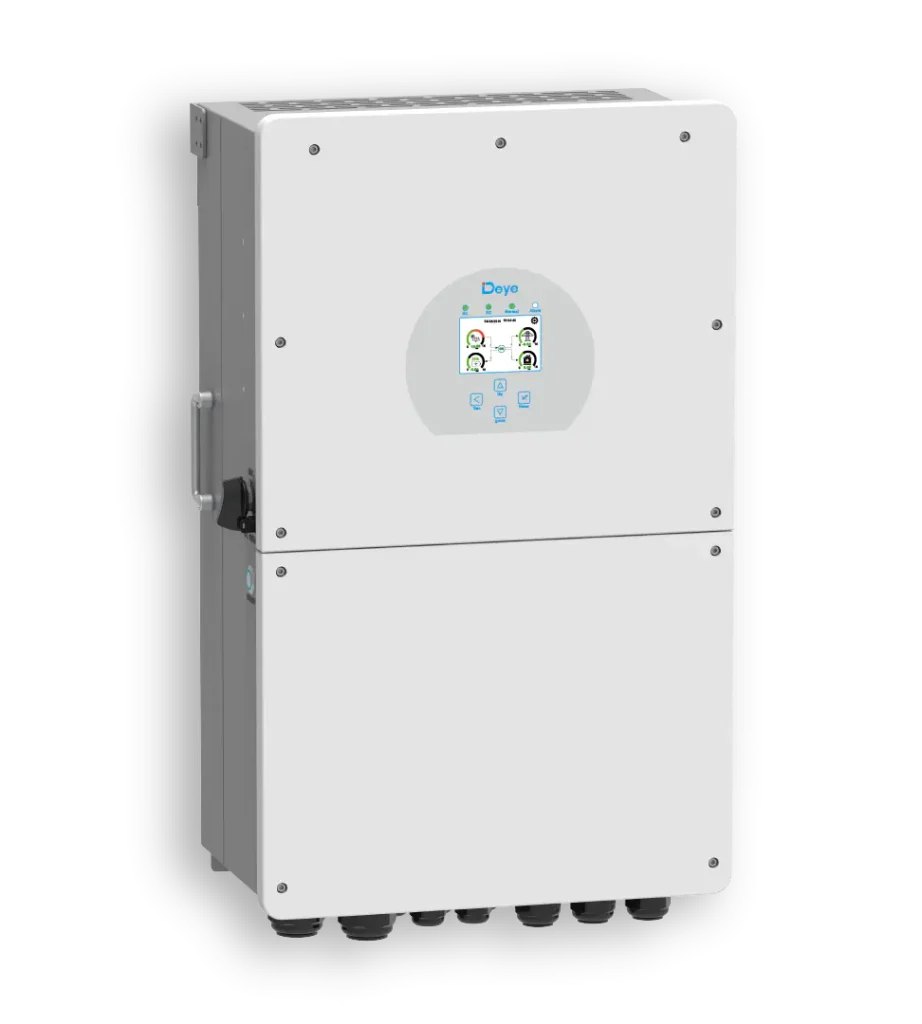

Deye 16kw Hybrid Inverter is a brand new series of single phase hybrid inverter supporting 160-700V HV Battery, ensuring system efficiency.
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range(V) | 40-60 | ||
| Max.Charging Current(A) | 220 | 250 | 290 |
| Max.Discharging Current(A) | 220 | 250 | 290 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of battery input | 2 | ||
| PV String Input Data | |||
Max. PV Access Power (W) | 24000 | 28000 | 32000 |
| Max DC Input Power（W） | 19200 | 22400 | 25600 |
| Max DC Input Voltage（V） | 500 | ||
| Start-up Voltage（V） | 125 | ||
| MPPT Voltage Range（V） | 150-425 | ||
| Rated DC Input Voltage(V) | 370 | ||
| Max Operating PV Input Current（A） | 26+26+26 | ||
| Max Input Short-Circuit Current（A） | 44+44+44 | ||
| No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 12000 | 14000 | 16000 |
| Max AC Input/Output Apparent Power （VA） | 13200 | 15400 | 17600 |
| Rated AC Input/Output Current（A） | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
| Max AC Input/Output Current（A） | 60/57.4 | 70/67 | 80/76.5 |
| Max Continuous AC Passthrough (grid to load)（A） | 100 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | ||
| Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | ||
| Grid Connection Form | L+N+PE | ||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| Interface | |||
| Communication Interface | RS485/RS232/CAN | ||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Noise | ＜50 dB(A) | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size（W*H*D）[mm] | 464*763*282（Excluding connectors and brackets） | ||
| Weight[kg] | 52 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||
| Type Of Cooling | Intelligent air cooling | ||
| Grid Regulation | IEC 61727,IEC 62116,NRS 097 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
Supporting the establishment, data acquisition, data monitoring, one-stop operation maintenance and after-sales service of all new energy power stations.
Through the Deye smart cloud big data platform, all types of power stations with transparent management which improves the value of power stations comprehensively
The Deye SUN-16K-SG01LP1-EU supports a maximum DC input power of 20,800W with a maximum DC input voltage of 500V. It also features 3 MPPT trackers and supports multiple string inputs for flexible solar panel configurations.
The inverter supports a maximum charging current of 290A and a maximum discharging current of 290A, making it suitable for large-capacity battery storage systems.
Yes. The Deye 16kW inverter supports up to 16 units in parallel for both on-grid and off-grid applications.
The inverter offers:
These efficiency ratings help maximise solar energy conversion and overall system performance.
The Deye 16kW inverter includes a backup UPS function with a 6ms automatic switchover time, helping keep essential loads powered during grid outages and load shedding.
